VW T5 Box Body/Bus, Type 7HB/7HA/7HM Rigid Trailer Hitch + 13-pin Electrical Kit (09/2009–08/2015) – Complete Set
VW T5 Box Body/Bus, Type 7HB/7HA/7HM Rigid Trailer Hitch + 13-pin Electrical Kit (09/2009–08/2015) – Complete Set
Couldn't load pickup availability
Suitable for:
Brand: VW
Model: T5
Feature: Box/bus, type 7HB/7HA/7HM
Year of construction: 09.2009 - 08.2015

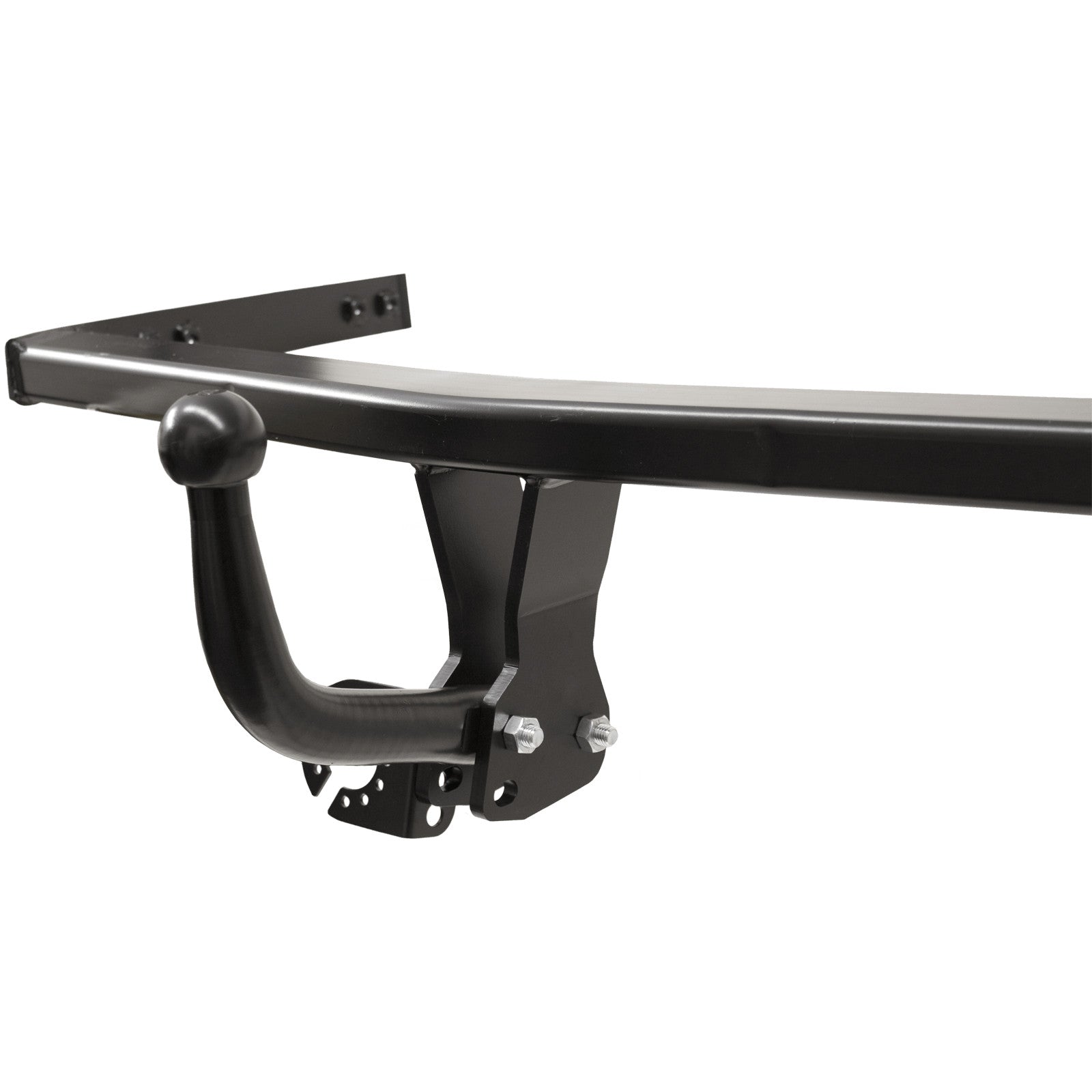

Trailer hitch: rigid
AHK rigid, screwed system
no TÜV required
Also suitable for models with factory-installed parking assistance.
Not suitable for Rockton model.
For box models it is necessary to install an additional inner bumper support (article 132190 ) for the optimal fit of the bumper.
All necessary screws and mounting hardware are included in delivery.
| Trailer load in kg: | 2800 |
|---|---|
| Execution: | rigid |
| D-value in kN: | 14 |
| Net weight (kg): | 13.9 |
| Test mark: | E20-55R-01 0992 |
| Foldable socket: | No |
| Bumper processing: | No |
| Support load in kg: | 120 |
| TÜV registration required: | No |
| Variant: | with screwed-on ball head |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
When using a bicycle or cargo rack, the installation of extension 190648 is required. Only then will the rear fog light on the vehicle be automatically switched off, as required by law.

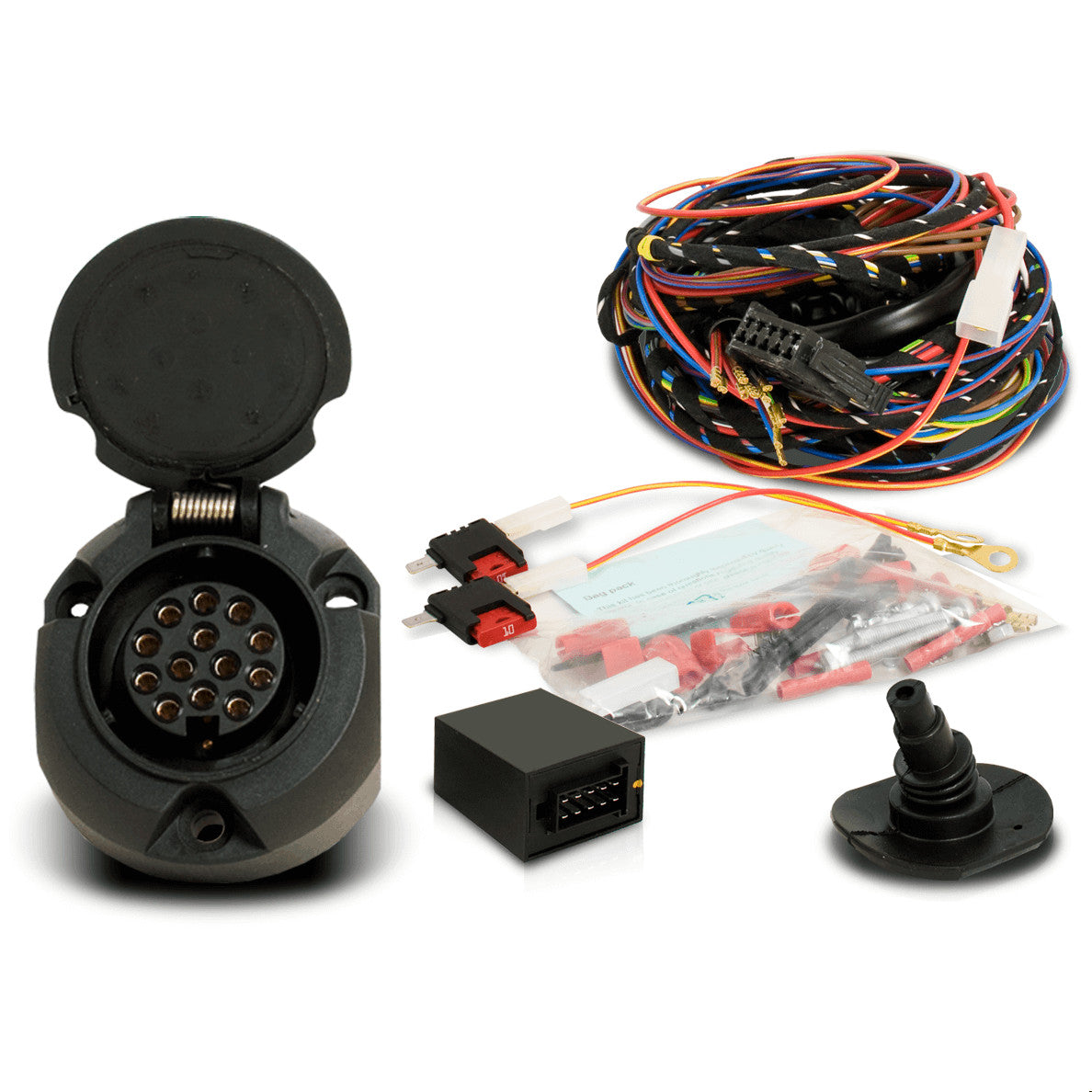

| Blink monitoring: | SUMMER |
|---|---|
| Coding required: | No |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 1.13 |
| Parking aid deactivation: | No |
| Vehicle-specific: | No |
| Charging cable integrated: | no |
| Polarity: | 13 |
