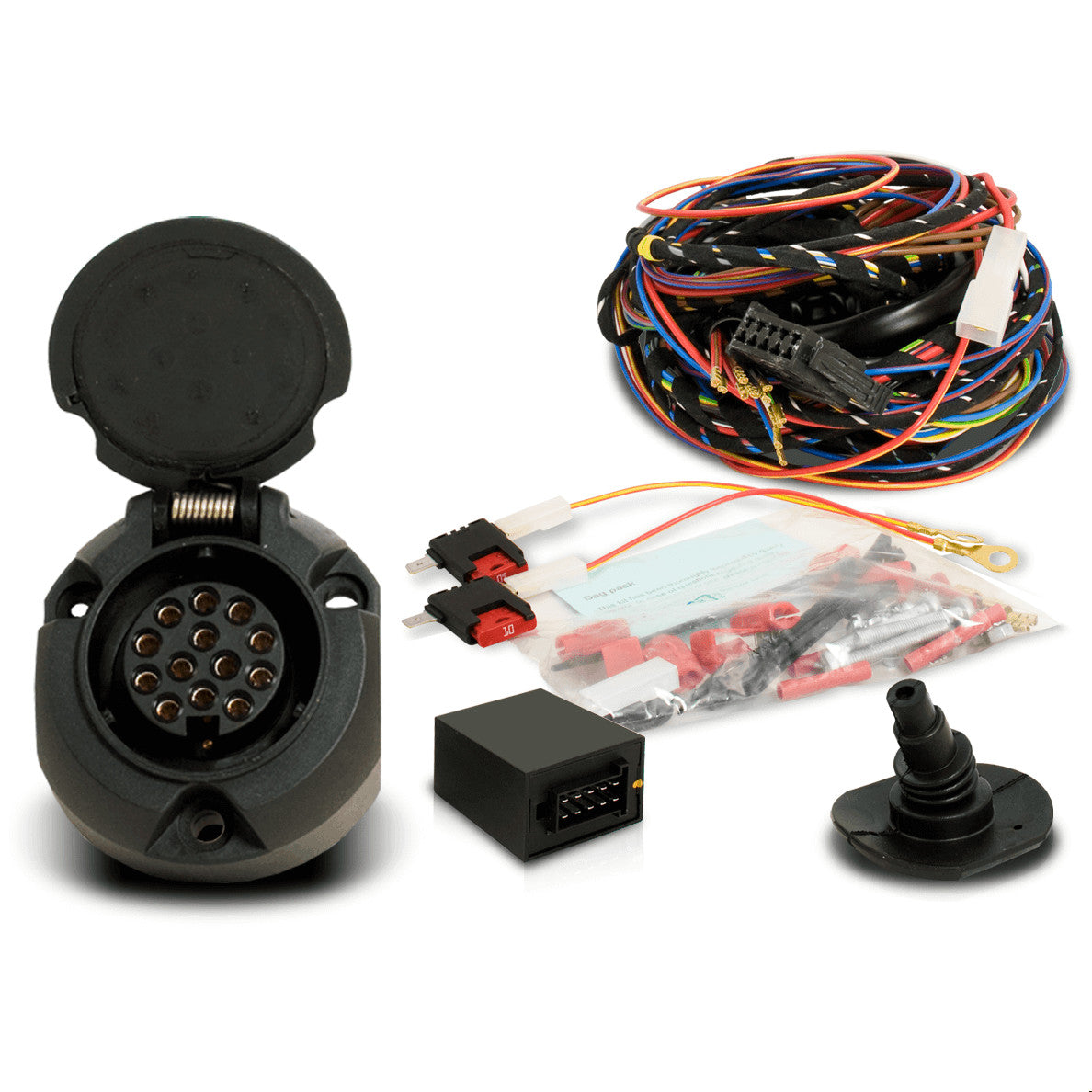

VW Caddy III / Life Type 2KB, 2KA rigid tow bar + 13-pin electrical kit (2004–2015)
VW Caddy III / Life Type 2KB, 2KA rigid tow bar + 13-pin electrical kit (2004–2015)
Couldn't load pickup availability
Suitable for:
Brand: VW

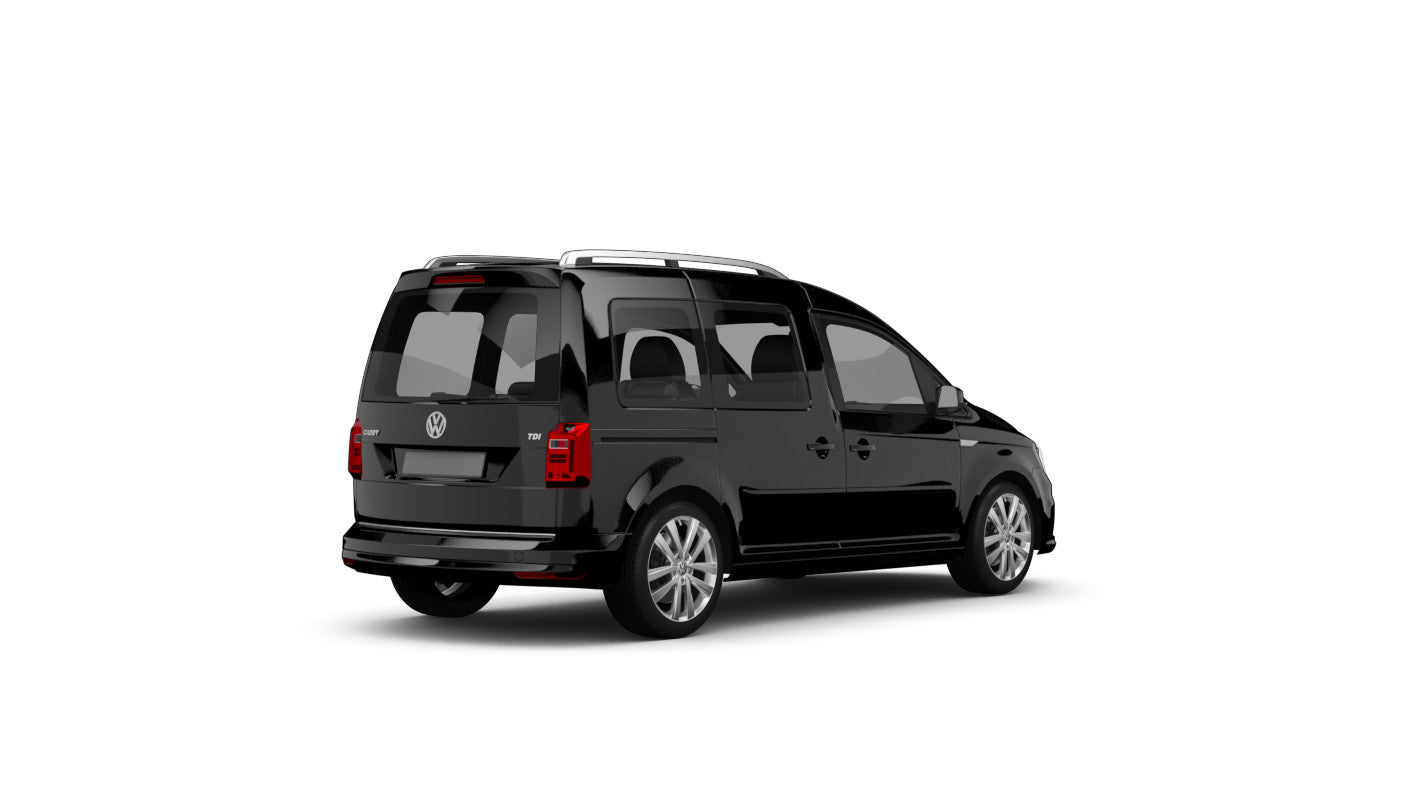

Model: Caddy III / Life
Feature: Type 2KB/2KA, front-wheel drive
Year of construction: March 2004 - April 2015

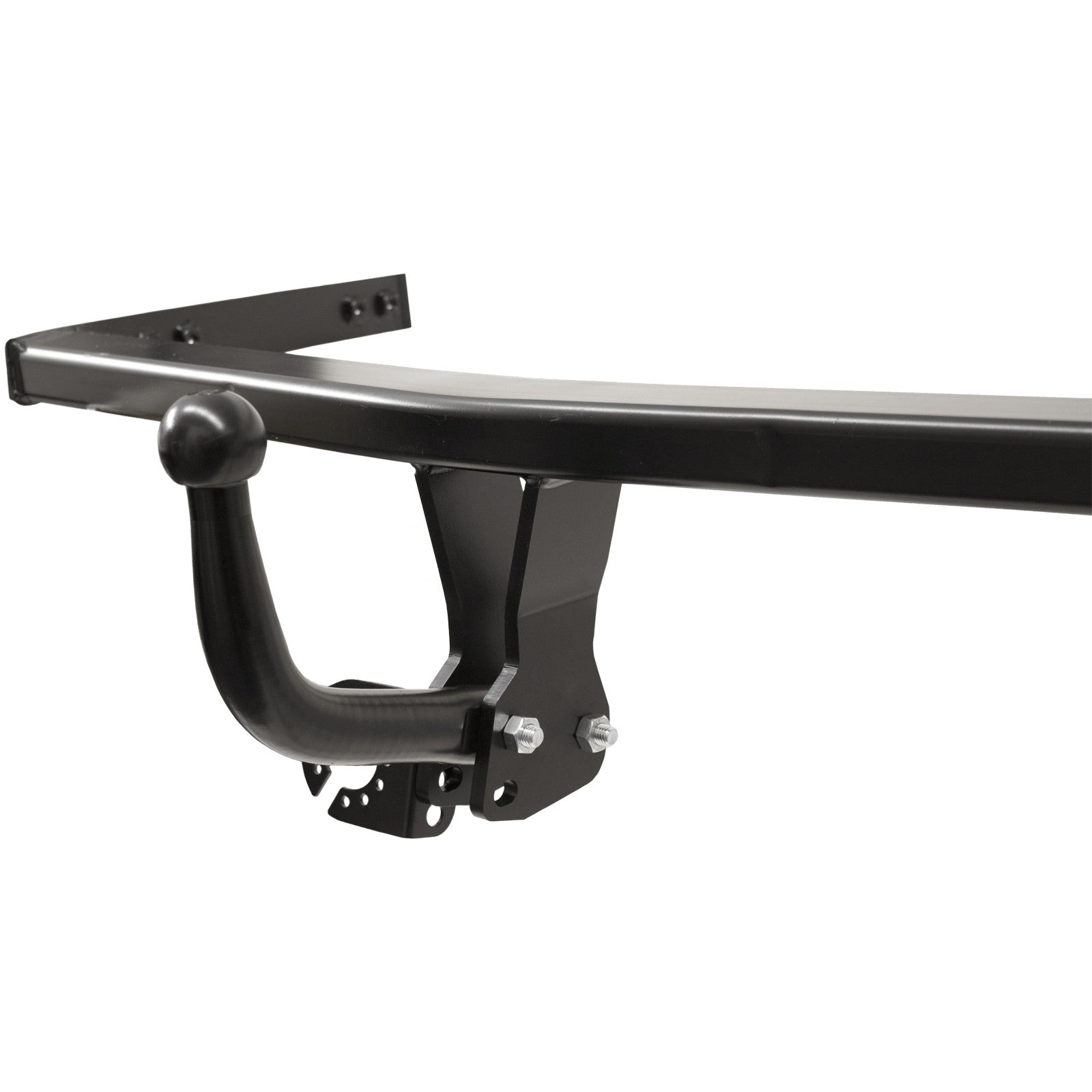

Trailer hitch: rigid
AHK rigid, screwed system
no TÜV required
Not suitable for Cross model.
Also suitable for Maxi models and models with all-wheel drive.
Not suitable for vehicles powered by natural gas (CNG or Ecofuel).
Please check the towing capacity in your vehicle registration document.
When installing the trailer coupling, the threaded insert nuts, article number 142105 , are also required.
All necessary screws and mounting hardware are included in delivery.
| Trailer load in kg: | 1600 |
|---|---|
| Execution: | rigid |
| Section visible: | with invisible cutout for bumper |
| Cutout dimensions WxH: | 50x10 |
| D-value in kN: | 9.4 |
| Net weight (kg): | 18.1 |
| Vehicle equipment: | for vehicles without gas operation |
| Test mark: | E20*94/20*0235*00 |
| Foldable socket: | No |
| Bumper processing: | Yes |
| Support load in kg: | 80 |
| TÜV registration required: | No |
| Variant: | with screwed-on ball head |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
When using a bicycle or cargo rack, the installation of extension 190648 is required. Only then will the rear fog light on the vehicle be automatically switched off, as required by law.
| Blink monitoring: | SUMMER |
|---|---|
| Coding required: | No |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 1.13 |
| Parking aid deactivation: | No |
| Vehicle-specific: | No |
| Charging cable integrated: | no |
| Polarity: | 13 |
