Mercedes B-Class W247 detachable tow bar + 13-pin electrical kit (from 2019) – complete set
Mercedes B-Class W247 detachable tow bar + 13-pin electrical kit (from 2019) – complete set
Couldn't load pickup availability
Suitable for:
Brand: Mercedes
Model: B-Class
Feature: Type W247
Year of construction: 01.2019 - now

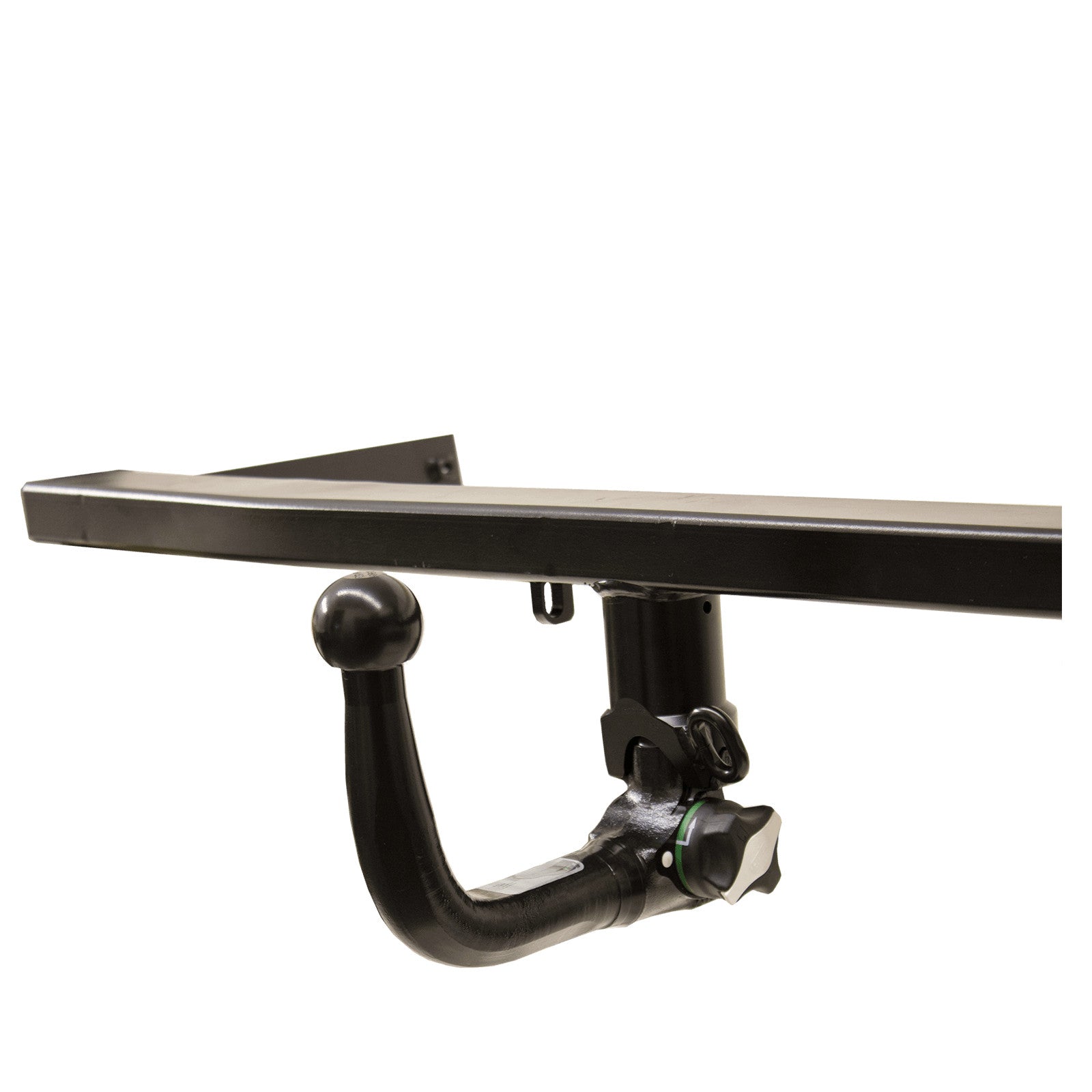

Trailer hitch: removable
Automatic system, removable - inserted from below
no TÜV required
It's possible that the vehicle's engine cooling isn't sufficient for trailer operation. In this case, it may be necessary to replace parts of the cooling system (e.g., fans).
We'd be happy to help you check whether your vehicle is adequately prepared. Please contact us and have your vehicle identification number ready.
All necessary screws and mounting hardware are included in delivery.
| Tow bar locking: | Automatic |
|---|---|
| Trailer load in kg: | 1970 |
| Execution: | removable |
| Section visible: | with invisible cutout for bumper |
| D-value in kN: | 10 |
| Net weight (kg): | 17.7 |
| Lockable ball head: | lockable |
| Test mark: | E7*55R-011949 |
| Foldable socket: | Yes |
| Bumper processing: | Yes |
| Support load in kg: | 80 |
| TÜV registration required: | No |
| Variant: | Ball bar inserted from below |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.

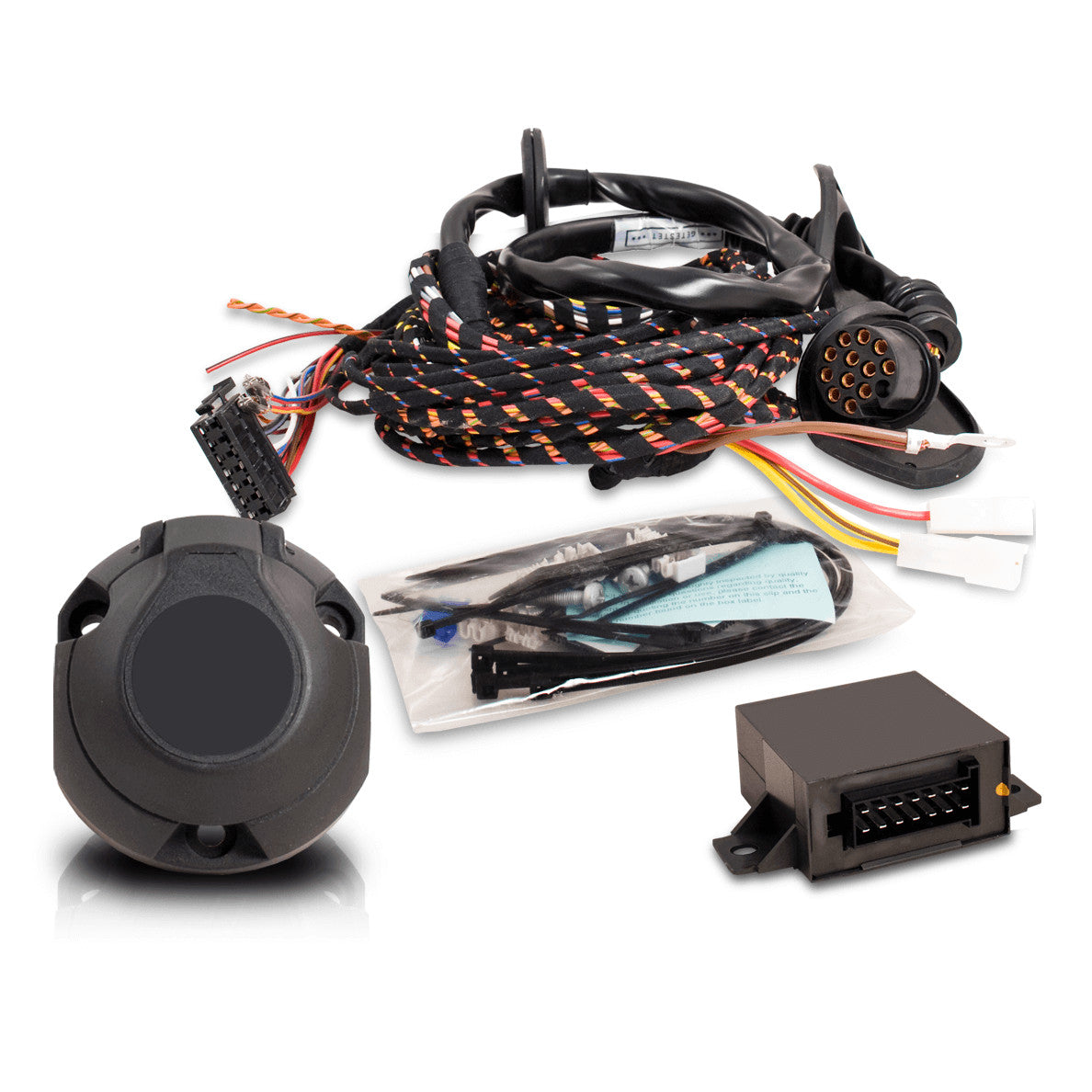

| Blink monitoring: | DATA BUS |
|---|---|
| Check control: | Yes |
| Coding required: | Yes |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 0.99 |
| Parking aid deactivation: | Yes |
| Exclusively at Trail-Tec: | Lighting test |
| Vehicle-specific: | Yes |
| Charging cable integrated: | no |
| Polarity: | 13 |
