FIAT Ducato Type 250 rigid tow bar + 13-pin electrical kit (2011–2024)
FIAT Ducato Type 250 rigid tow bar + 13-pin electrical kit (2011–2024)
Couldn't load pickup availability
Delivery time: up to 14 working days
Suitable for:
Brand: Fiat
Model: Ducato box/bus
Feature: Type 250
Year of construction: February 2011 - June 2024

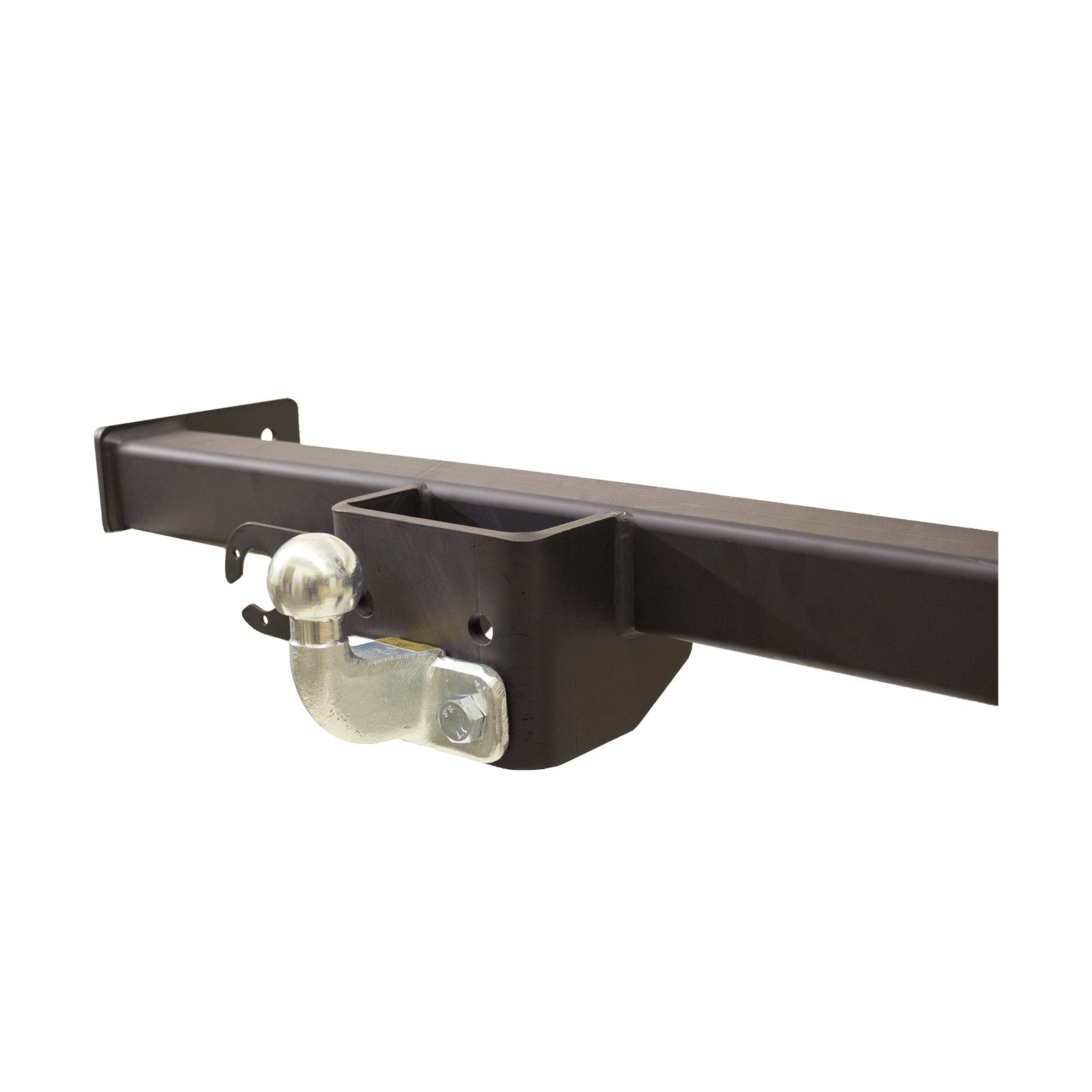

Trailer hitch: rigid
2-hole towing bracket
no TÜV required
Not suitable for e-Ducato.
Also suitable for models with long wheelbase (type L5).
When using a bike rack, a maximum of 3 bikes may be transported.
For vehicles with Smart Key Sensor, additional mounting kit 197800 is required.
All necessary screws and mounting hardware are included in delivery.
| Trailer load in kg: | 3000 |
|---|---|
| Execution: | rigid |
| Section visible: | with invisible cutout for bumper |
| Cutout dimensions WxH: | see drawing, various dimensions |
| D-value in kN: | 15.85 |
| Net weight (kg): | 23.2 |
| For vehicle length: | 4963, 5413, 5998, 6363 |
| Test mark: | E6*55R*1303*01 |
| Foldable socket: | No |
| Bumper processing: | Yes |
| Support load in kg: | 150 |
| TÜV registration required: | No |
| Variant: | with 2-hole flange ball |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.

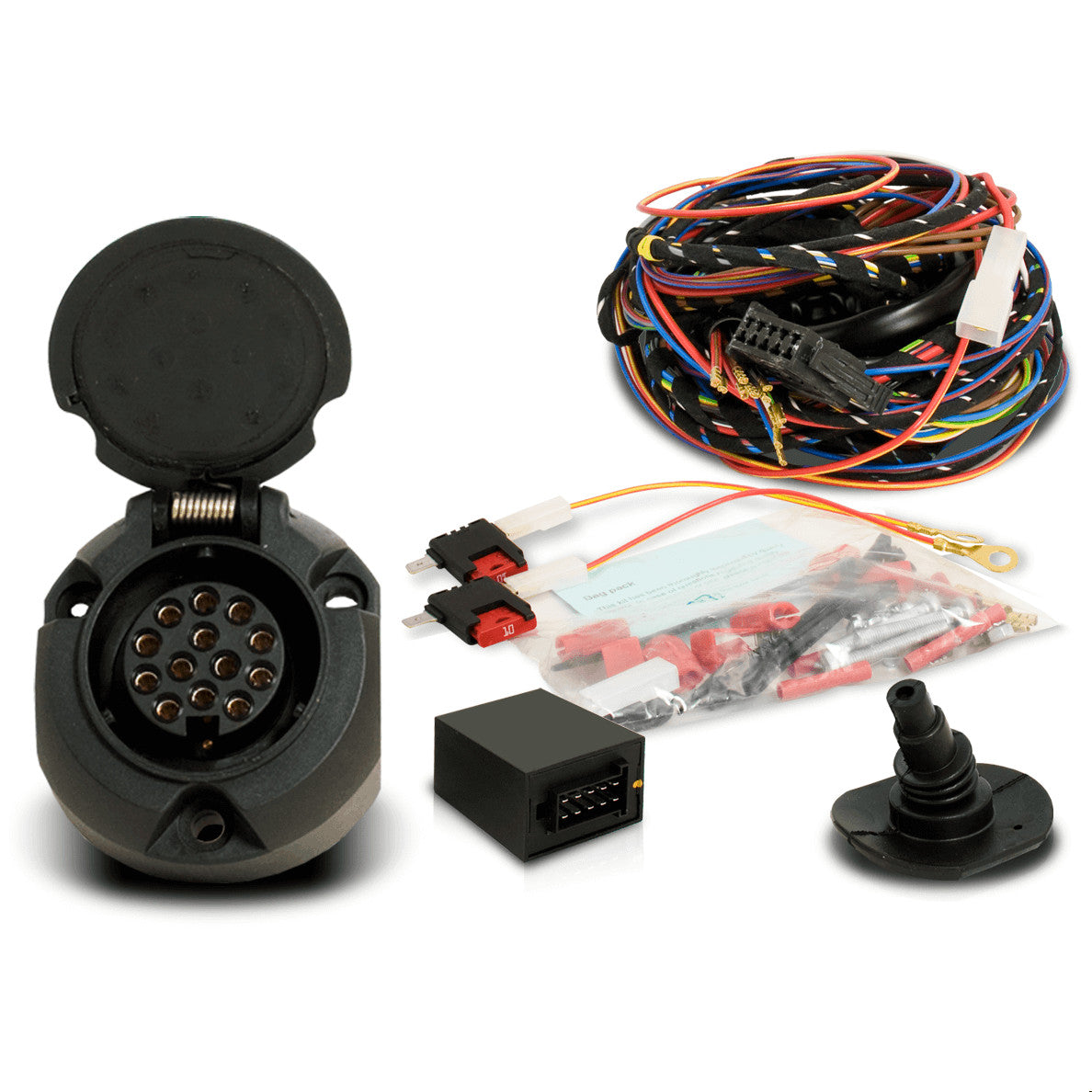

"Not suitable for use with a bicycle or cargo carrier. No deactivation of the rear fog light on the vehicle.
On some vehicles it may be necessary to connect cables from the electrical kit in the tailgate.
| Blink monitoring: | SUMMER |
|---|---|
| Coding required: | No |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 1.17 |
| Parking aid deactivation: | No |
| Vehicle-specific: | No |
| Charging cable integrated: | no |
| Polarity: | 13 |
