BMW 3 Series F30 Sedan complete tow bar kit – detachable including 13-pin + electrical kit (11/2011–02/2014)
BMW 3 Series F30 Sedan complete tow bar kit – detachable including 13-pin + electrical kit (11/2011–02/2014)
Couldn't load pickup availability
Suitable for:
Brand: BMW
Model: 3 Series Sedan
Feature: before facelift
Year of construction: November 2011 - February 2014

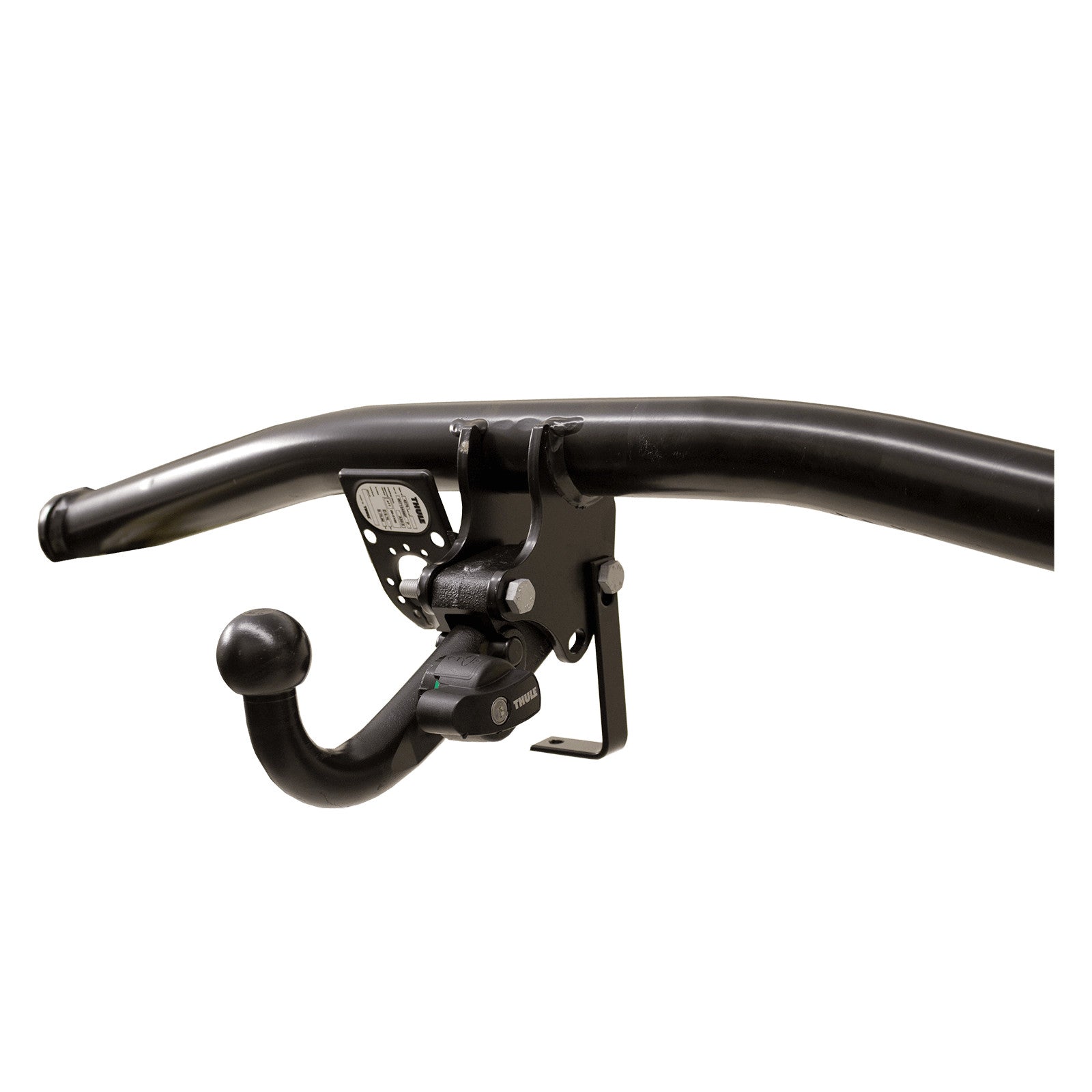

Trailer hitch: removable
Automatic system, removable - inserted diagonally from below
no TÜV required
Not suitable for M3 and 330e models.
Also suitable for Active Hybrid.
Not for plug-in hybrids.
For the Efficient Dynamics model, check whether the vehicle has a towing capacity.
The required heat shield for the exhaust is available from your BMW dealer.
All necessary screws and mounting hardware are included in delivery.
| Tow bar locking: | Automatic |
|---|---|
| Trailer load in kg: | 1700 |
| Execution: | removable |
| Section visible: | with invisible cutout for bumper |
| Cutout dimensions WxH: | 280x130 |
| D-value in kN: | 10 |
| Net weight (kg): | 14.6 |
| Lockable ball head: | lockable |
| Test mark: | E11*R55*01*8385 |
| Foldable socket: | Yes |
| Bumper processing: | Yes |
| Support load in kg: | 75 |
| TÜV registration required: | No |
| Variant: | Ball bar inserted diagonally from below |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
When using a bicycle or cargo rack, the installation of extension 190648 is required. Only then will the rear fog light on the vehicle be automatically switched off, as required by law.

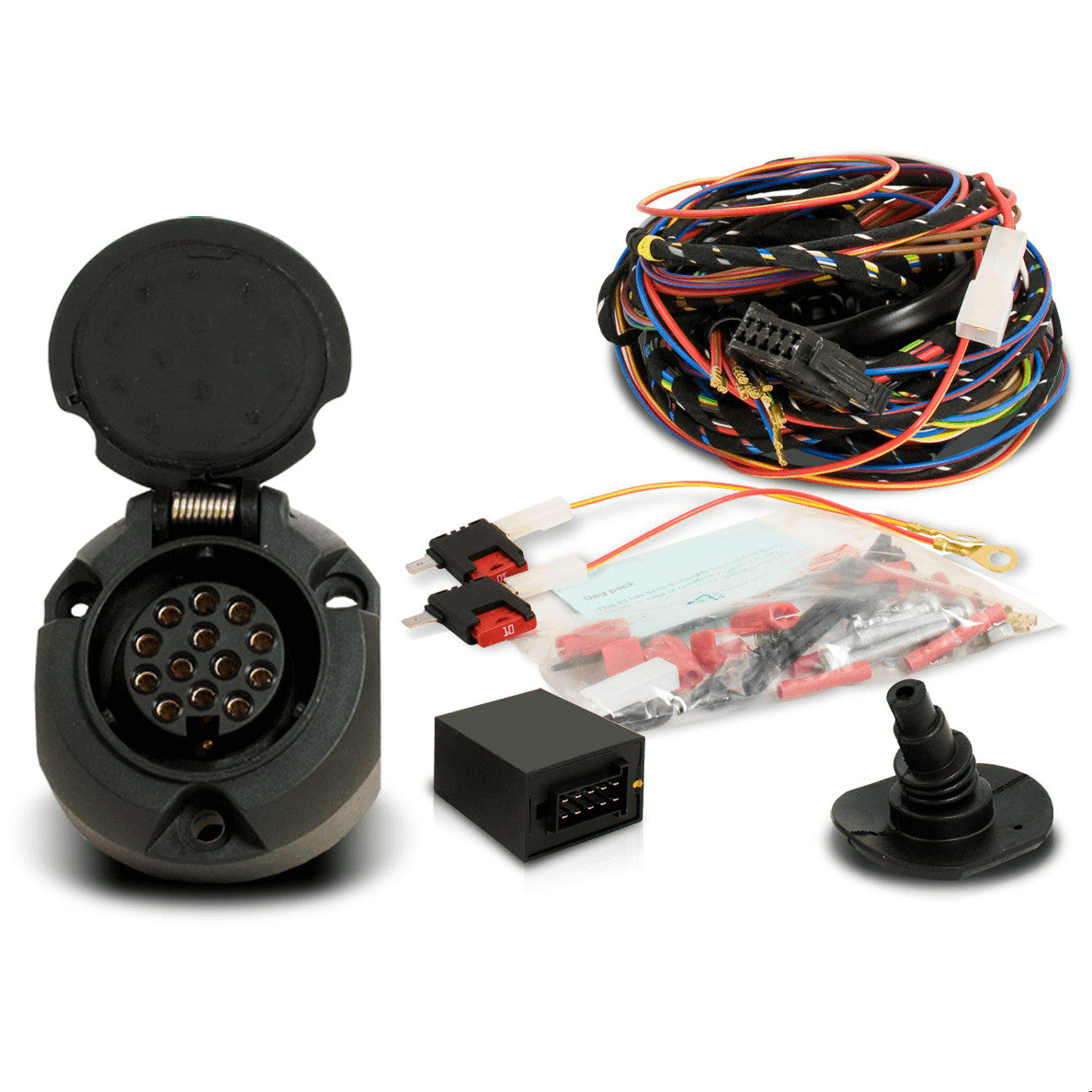

| Blink monitoring: | SUMMER |
|---|---|
| Coding required: | No |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 1.13 |
| Parking aid deactivation: | No |
| Vehicle-specific: | No |
| Charging cable integrated: | no |
| Polarity: | 13 |
