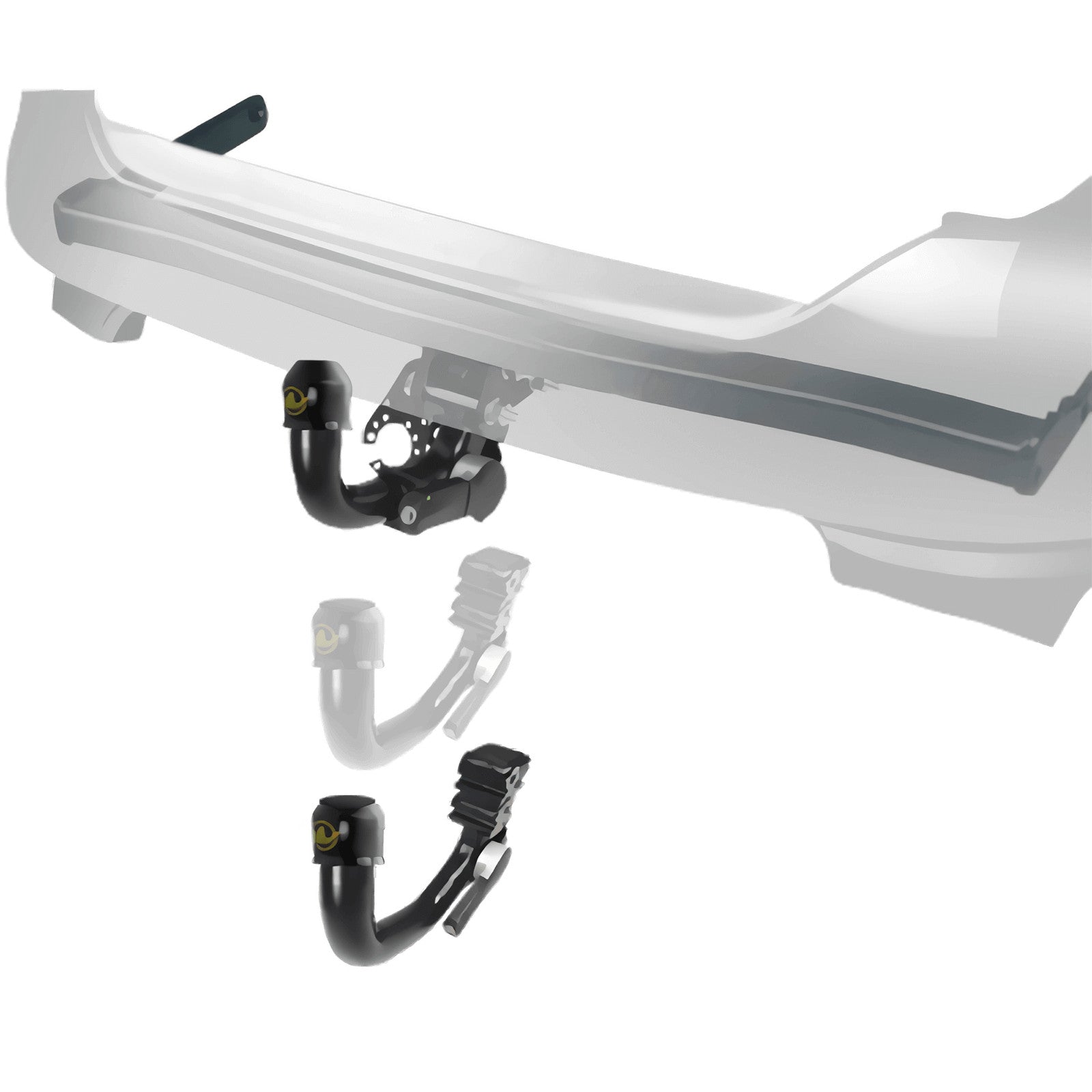

BMW 3 Series Sedan Type E90 Complete tow bar kit – detachable including 13-pin + electrical kit (02/2005–01/2012)
BMW 3 Series Sedan Type E90 Complete tow bar kit – detachable including 13-pin + electrical kit (02/2005–01/2012)
Couldn't load pickup availability
Suitable for:
Brand: BMW
Model: 3 Series Sedan
Feature: Type E90
Year of construction: February 2005 - January 2012
Trailer hitch: removable
Automatic system, removable - inserted from below
no TÜV required
Not suitable for models 335i, 335d, 335ix, 335i xDrive, M3 or M-Package.
For vehicles built before 03.05., the fastening bolts on the vehicle must be replaced by a BMW specialist workshop.
For Efficient Dynamics models, also check whether the vehicle has a trailer load capacity.
The vehicle's blower motor must have a minimum power rating for trailer operation. Therefore, please refer to the instructions in the vehicle's owner's manual.
All necessary screws and mounting hardware are included in delivery.
| Tow bar locking: | Automatic |
|---|---|
| Trailer load in kg: | 1900 |
| Execution: | removable |
| Section visible: | with invisible cutout for bumper |
| Cutout dimensions WxH: | see diagram |
| D-value in kN: | 10.2 |
| Net weight (kg): | 22.6 |
| Lockable ball head: | lockable |
| Test mark: | E6*94/20*0536*01 |
| Foldable socket: | Yes |
| Bumper processing: | Yes |
| Support load in kg: | 75 |
| TÜV registration required: | No |
| Variant: | Ball bar inserted from below |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
The vehicle's blower motor must have a minimum power rating for trailer operation. Therefore, please refer to the instructions in the vehicle's owner's manual.

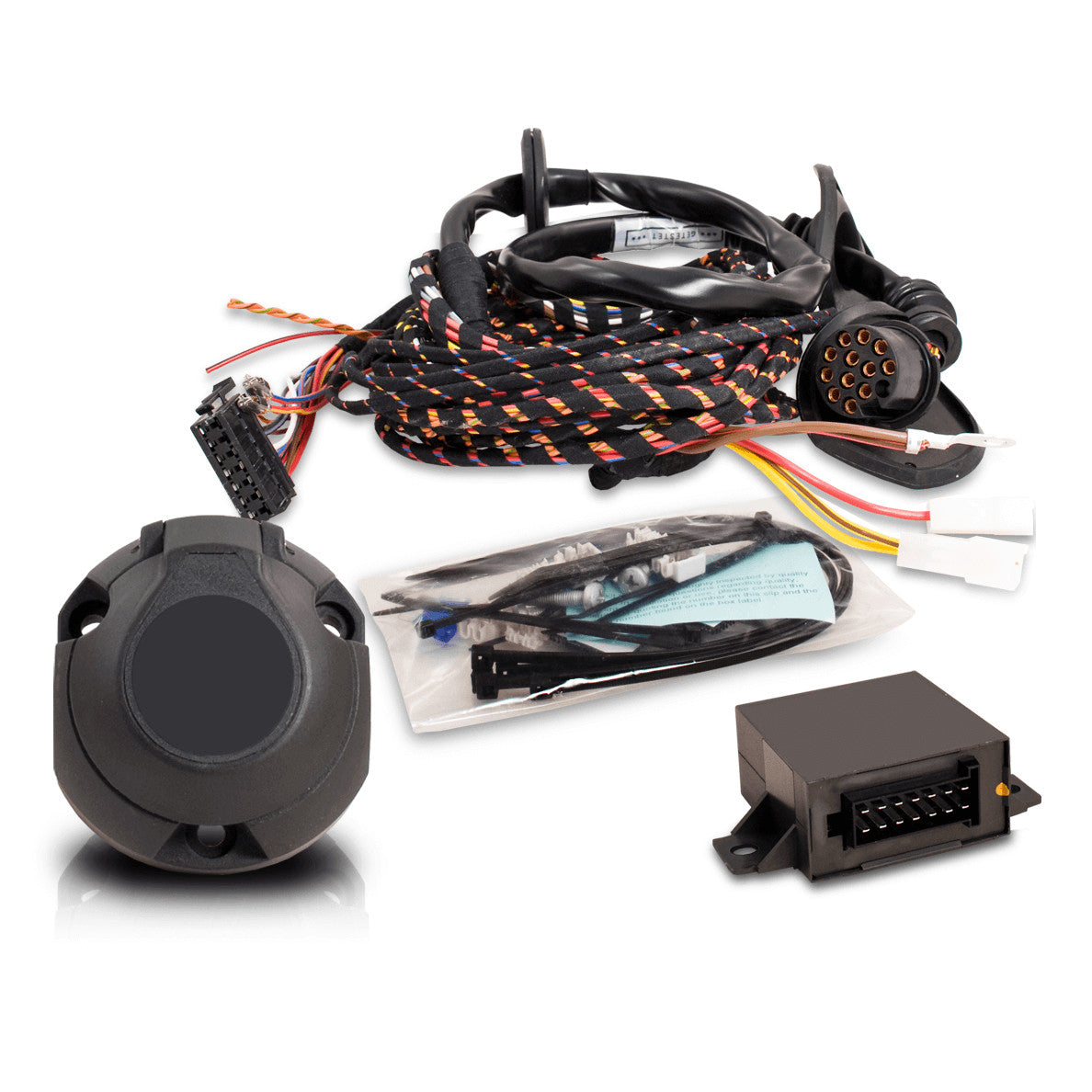

| Blink monitoring: | DATA BUS |
|---|---|
| Check control: | Yes |
| Coding required: | Yes |
| Continuous current integrated: | Yes |
| Net weight (kg): | 1,338 |
| Parking aid deactivation: | Yes |
| Exclusively at Trail-Tec: | Lighting test |
| Vehicle-specific: | Yes |
| Charging cable integrated: | no |
| Polarity: | 13 |
