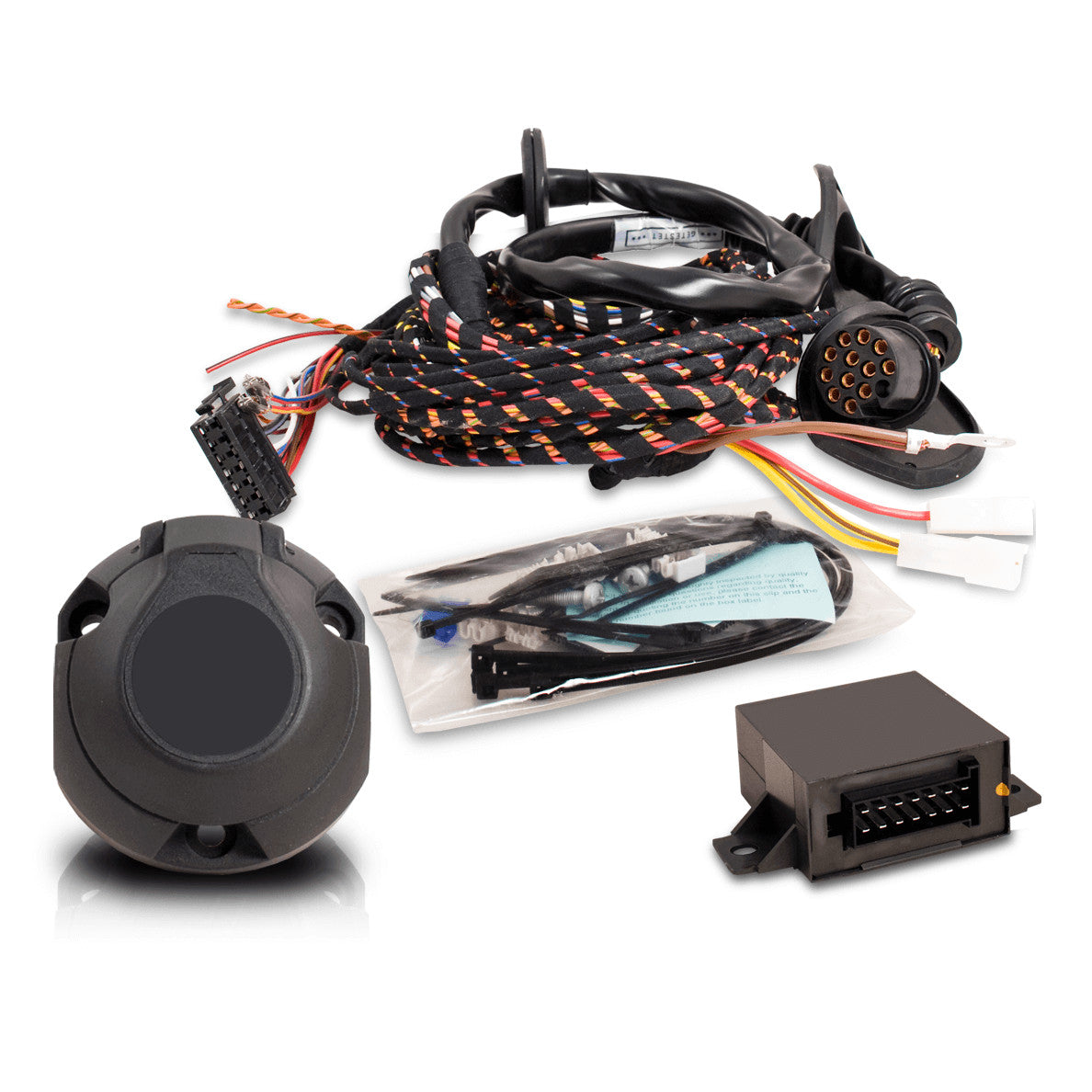

VW Caddy IV Type SAA/SAB detachable tow bar + 13-pin electrical kit (from 05/2015)
VW Caddy IV Type SAA/SAB detachable tow bar + 13-pin electrical kit (from 05/2015)
Couldn't load pickup availability
Suitable for:
Brand: VW
Model: Caddy IV
Feature: Type SAA/SAB
Year of construction: 05.2015 - now

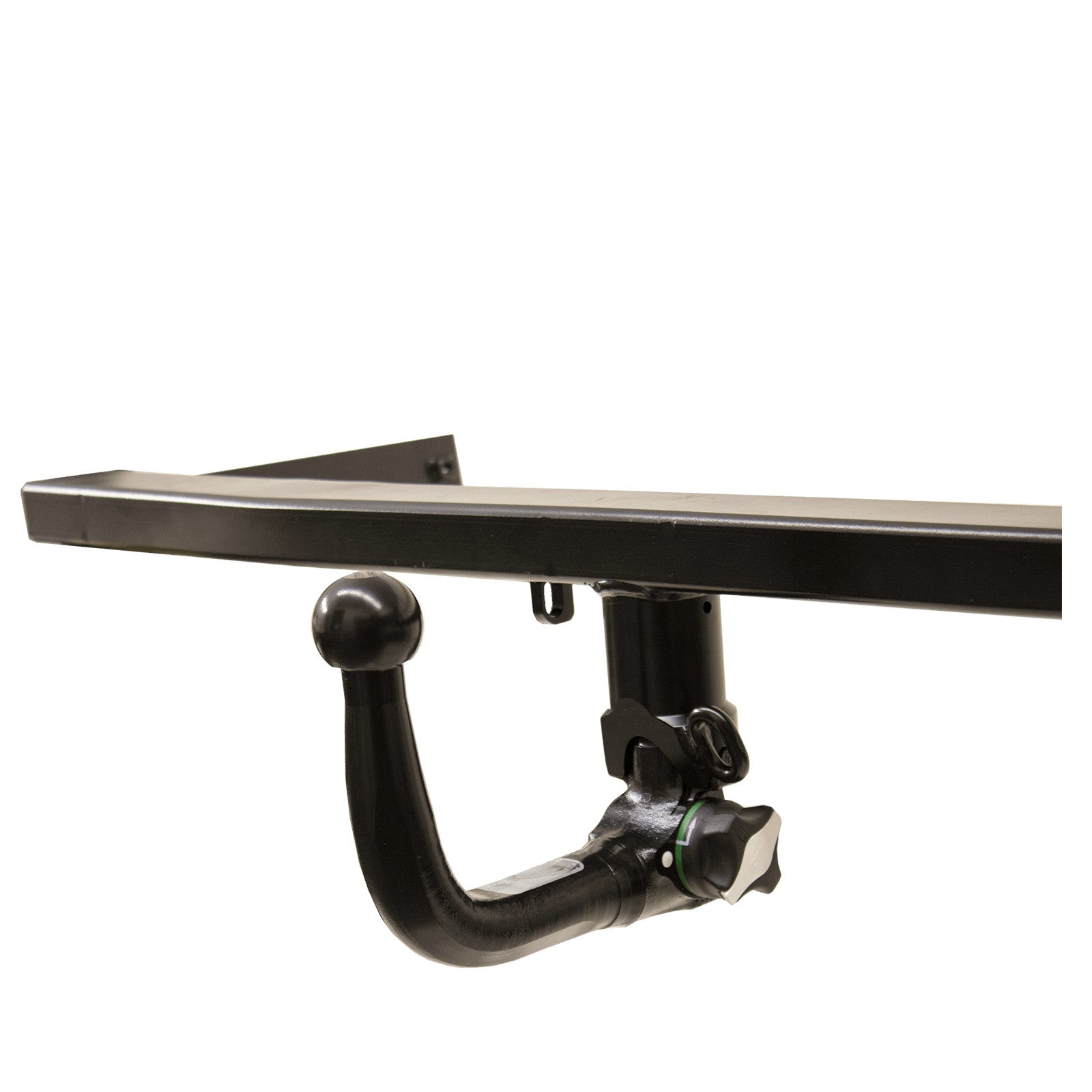

Trailer hitch: removable
Automatic system, removable - inserted from below
no TÜV required
Also suitable for Maxi models and models with all-wheel drive.
Not suitable for vehicles powered by natural gas (CNG or Ecofuel).
Please check the towing capacity in your vehicle registration document.
When installing the trailer coupling, the threaded insert nuts, article number 142105 , are also required.
All necessary screws and mounting hardware are included in delivery.
| Tow bar locking: | Automatic |
|---|---|
| Trailer load in kg: | 1650 |
| Execution: | removable |
| D-value in kN: | 9.4 |
| Net weight (kg): | 23 |
| Vehicle equipment: | for vehicles without gas operation |
| Lockable ball head: | lockable |
| Test mark: | E7*55R*011362*00 |
| Foldable socket: | Yes |
| Bumper processing: | No |
| Support load in kg: | 80 |
| TÜV registration required: | No |
| Variant: | Ball bar inserted from below |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
Can only be used for vehicles without preparation!
| Blink monitoring: | DATA BUS |
|---|---|
| Check control: | Yes |
| Coding required: | Yes |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 1,206 |
| Parking aid deactivation: | Yes |
| Exclusively at Trail-Tec: | Lighting test |
| Vehicle-specific: | Yes |
| Charging cable integrated: | no |
| Polarity: | 13 |
