Mercedes C-Class Estate S205 detachable tow bar + 7-pin electrical kit (2014–2018)
Mercedes C-Class Estate S205 detachable tow bar + 7-pin electrical kit (2014–2018)
Couldn't load pickup availability
Suitable for:
Brand: Mercedes
Model: C-Class Estate (station wagon)
Feature: Type S205
Year of construction: 09.2014 - 06.2018

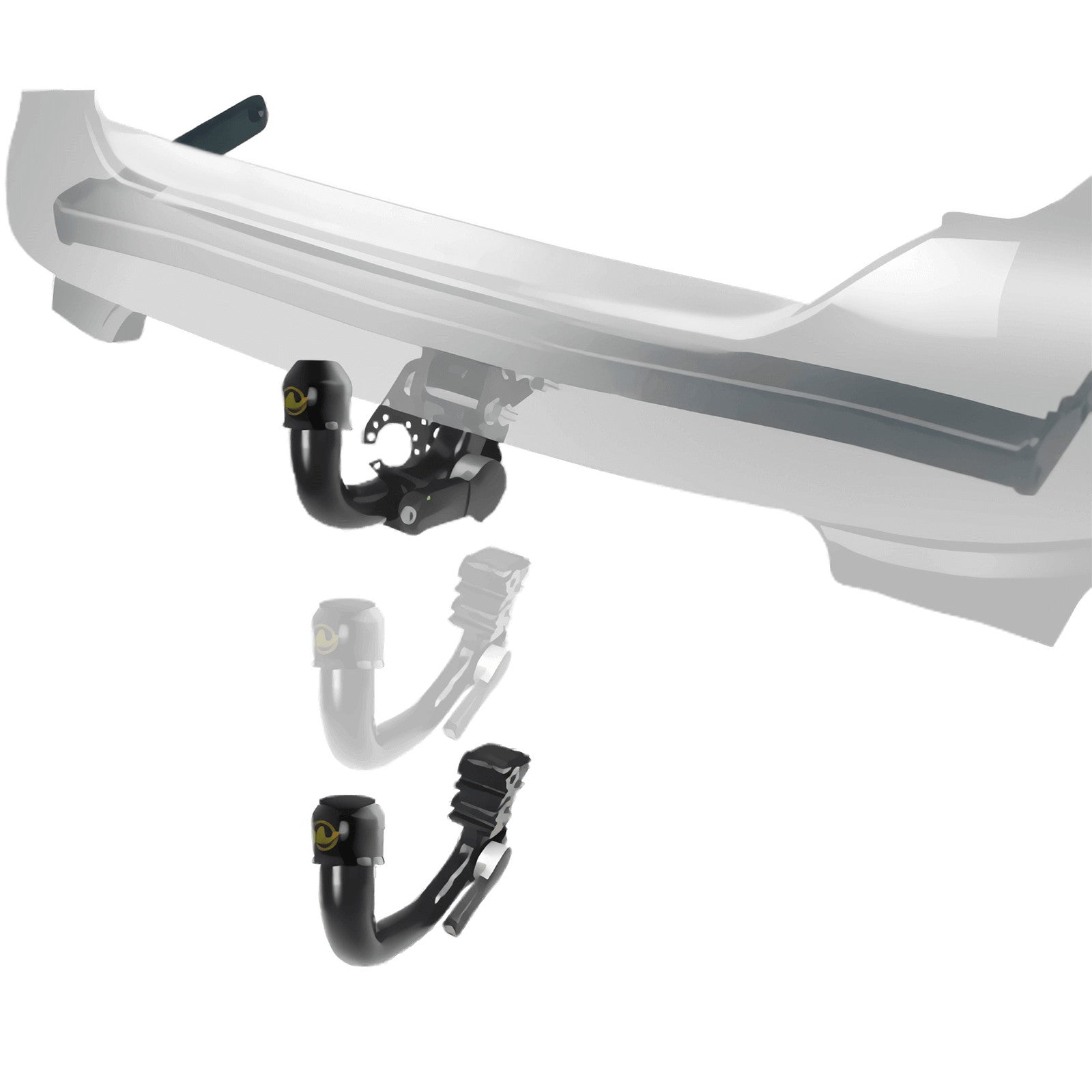

Trailer hitch: removable
Automatic system, removable - inserted from below
no TÜV required
Not suitable for AMG models and vehicles with AMG optics package.
The vehicle's blower motor must have a minimum power of 600 watts. Therefore, please refer to the vehicle's owner's manual.
All necessary screws and mounting hardware are included in delivery.
| Tow bar locking: | Automatic |
|---|---|
| Trailer load in kg: | 2100 |
| Execution: | removable |
| Section visible: | model-dependent |
| Cutout dimensions WxH: | 245 x 120, 295 x 130 |
| D-value in kN: | 11.45 |
| Net weight (kg): | 24 |
| Lockable ball head: | lockable |
| Test mark: | E6*55R*1350*01 |
| Foldable socket: | Yes |
| Bumper processing: | Model dependent |
| Support load in kg: | 115 |
| TÜV registration required: | No |
| Variant: | Ball bar inserted from below |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
Can be used until model year 07.2018.

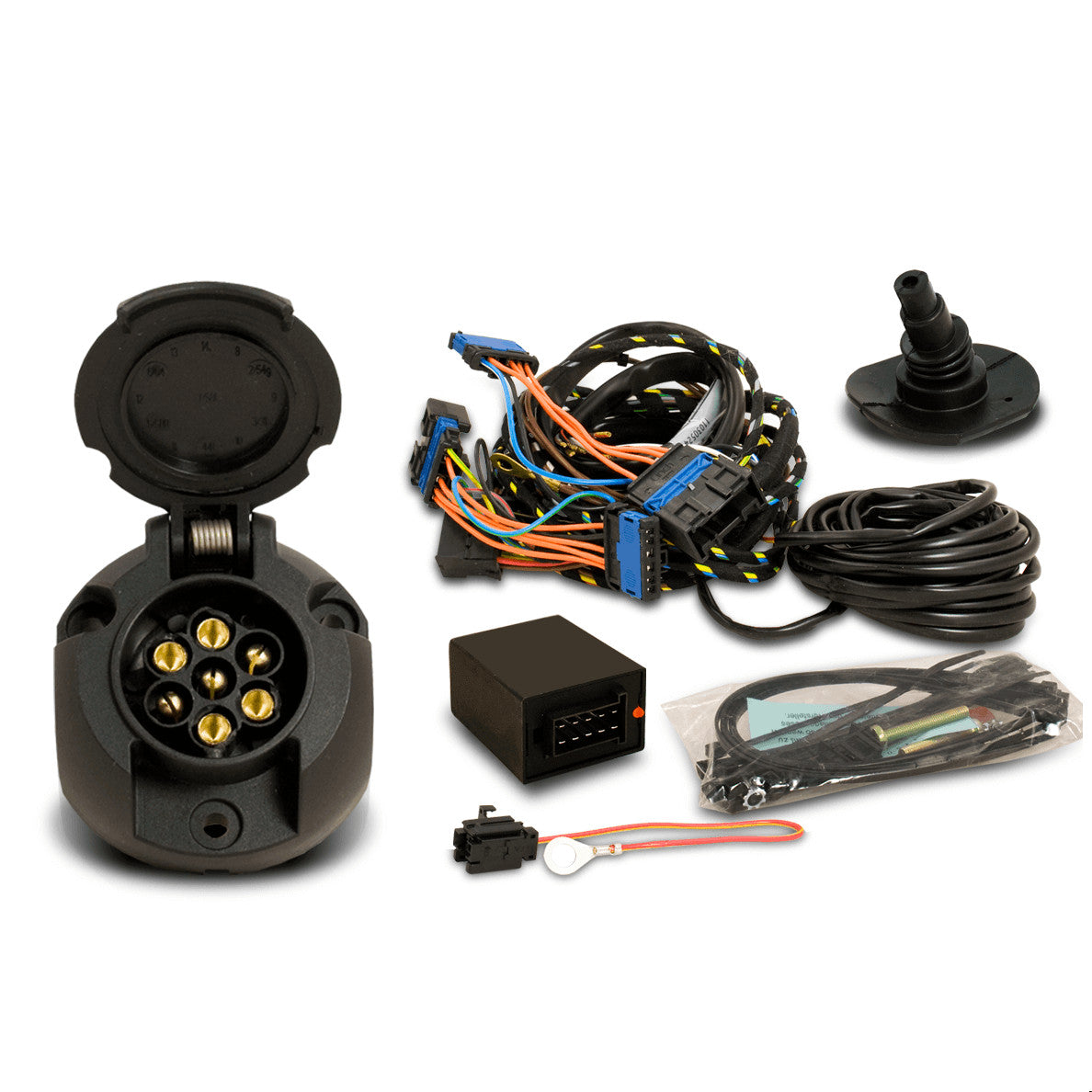

| Blink monitoring: | DATA BUS |
|---|---|
| Check control: | Yes |
| Coding required: | Yes |
| Continuous current expandable: | no |
| Continuous current integrated: | No |
| Net weight (kg): | 0.780 |
| Parking aid deactivation: | Yes |
| Exclusively at Trail-Tec: | Lighting test |
| Vehicle-specific: | Yes |
| Charging cable integrated: | no |
| Polarity: | 7 |
