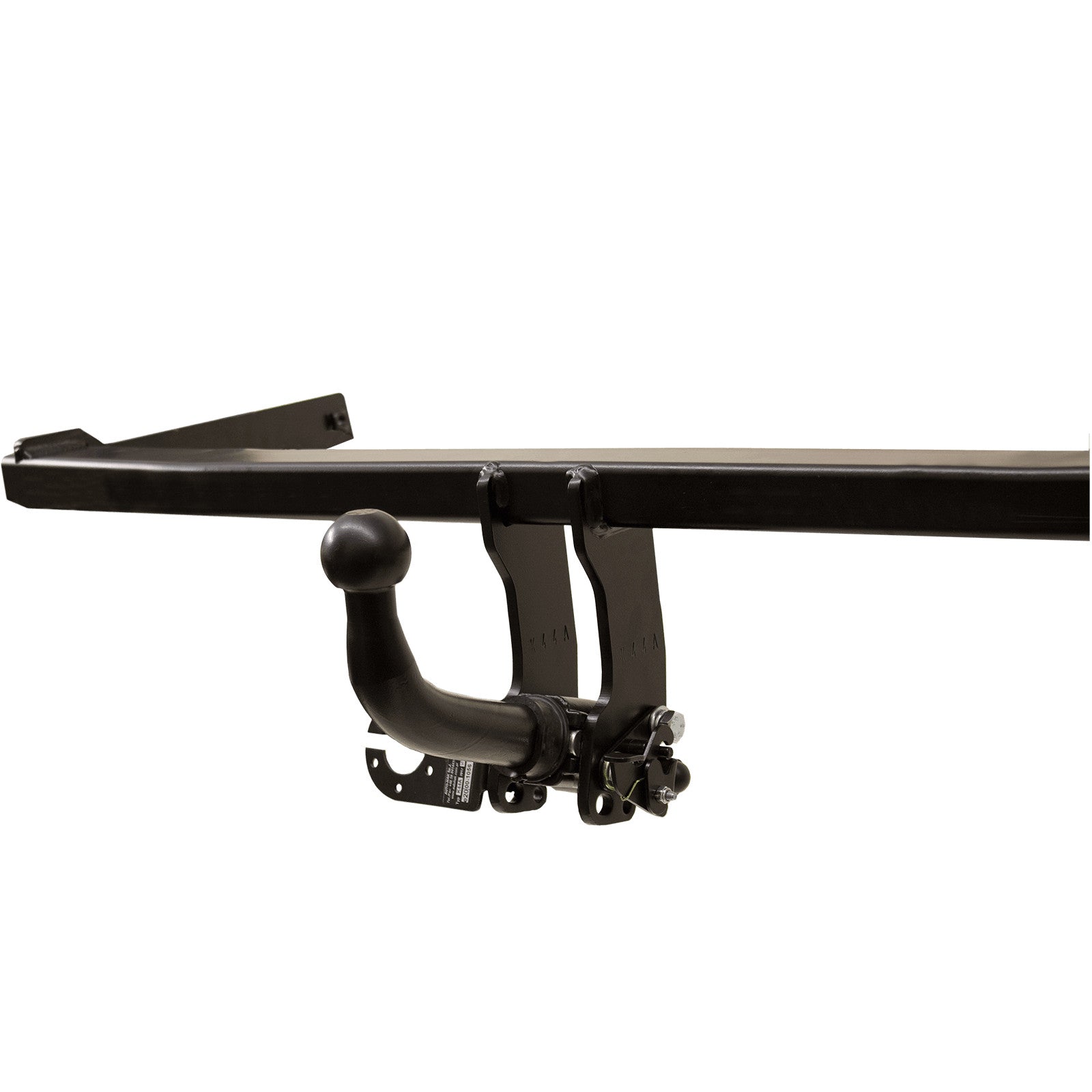

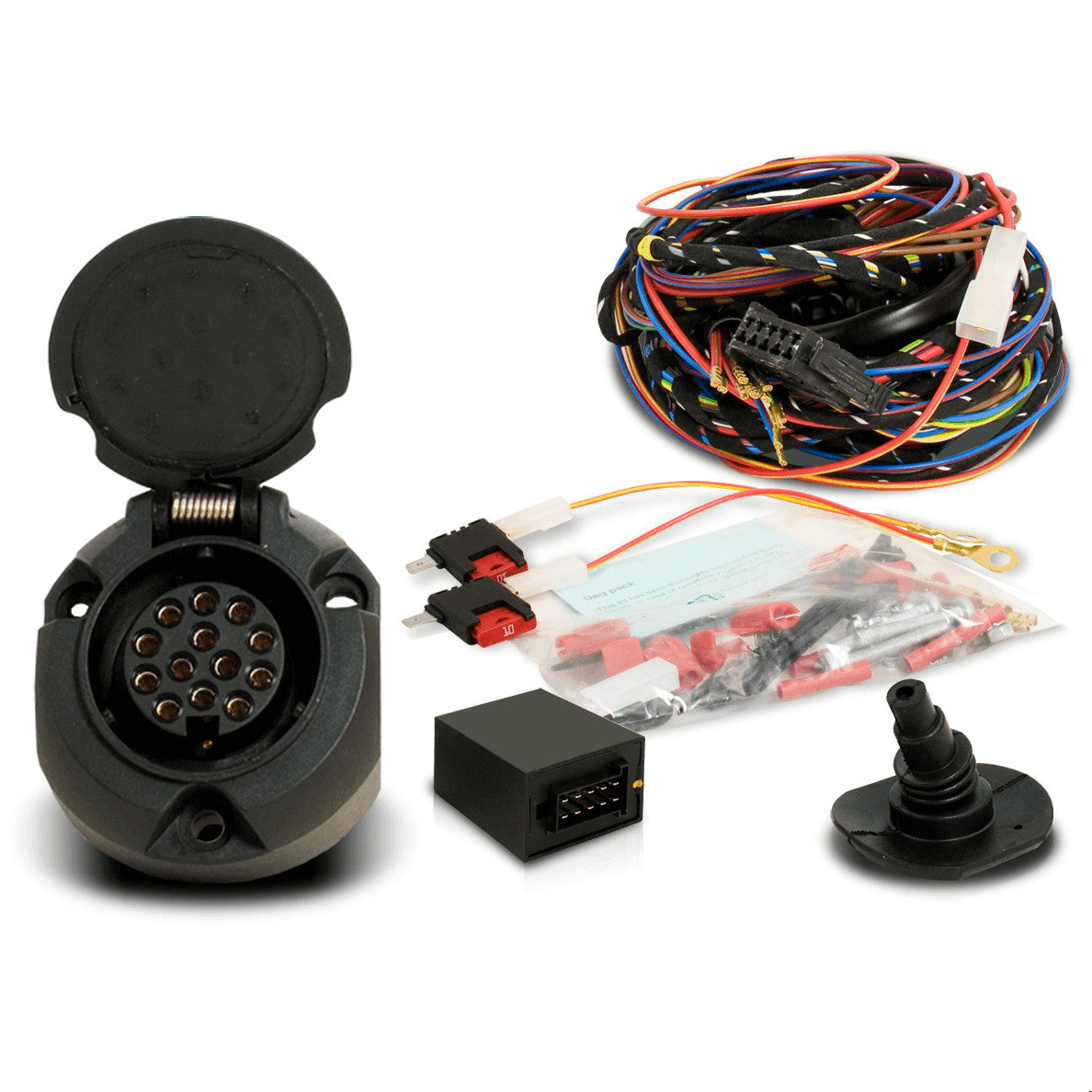

BMW 3 Series Sedan E90 detachable tow bar + 13-pin electrical kit (2005–2012)
BMW 3 Series Sedan E90 detachable tow bar + 13-pin electrical kit (2005–2012)
Couldn't load pickup availability
Suitable for:
Brand: BMW
Model: 3 Series Sedan
Feature: Type E90
Year of construction: February 2005 - January 2012
Trailer hitch: removable
Lever system, removable - inserted from the back
no TÜV required
Not suitable for models 335i, 335d, 335ix, 335i xDrive, M3 and vehicles with M bumper package.
Up to model year 03.2005, the fastening bolts on the vehicle must be replaced by a BMW specialist workshop.
For the Efficient Dynamics model, check whether the vehicle has a towing capacity.
The vehicle's blower motor must have a minimum power rating for trailer operation. Therefore, please refer to the instructions in the vehicle's owner's manual.
All necessary screws and mounting hardware are included in delivery.
| Tow bar locking: | Lever system |
|---|---|
| Trailer load in kg: | 1965 |
| Execution: | removable |
| Section visible: | with invisible cutout for bumper |
| Cutout dimensions WxH: | 20x40 |
| D-value in kN: | 10.35 |
| Net weight (kg): | 17,824 |
| Vehicle equipment: | for vehicles without M bumper package |
| Lockable ball head: | not lockable |
| Test mark: | E20*94/20*0467*00 |
| Foldable socket: | No |
| Bumper processing: | Yes |
| Support load in kg: | 80 |
| TÜV registration required: | No |
| Variant: | Ball bar inserted from behind |
General Operating Permit (ABE) and ECE - Product Certification
Towbars that have already been approved according to Regulation ECE 55 or, previously, Directive 94/20/E are already tested according to European standards. They comply with EC directives, are type-tested, and are approved for the German market. It is not necessary to have the towbar approved by an expert or inspector after installation, nor to have it entered in the vehicle documents.
When using a bicycle or cargo rack, the installation of extension 190648 is required. Only then will the rear fog light on the vehicle be automatically switched off, as required by law.
| Blink monitoring: | SUMMER |
|---|---|
| Coding required: | No |
| Continuous current expandable: | Yes |
| Continuous current integrated: | No |
| Net weight (kg): | 1.13 |
| Parking aid deactivation: | No |
| Vehicle-specific: | No |
| Charging cable integrated: | no |
| Polarity: | 13 |
Free shipping within Germany!
